33 Dashboard Display

General

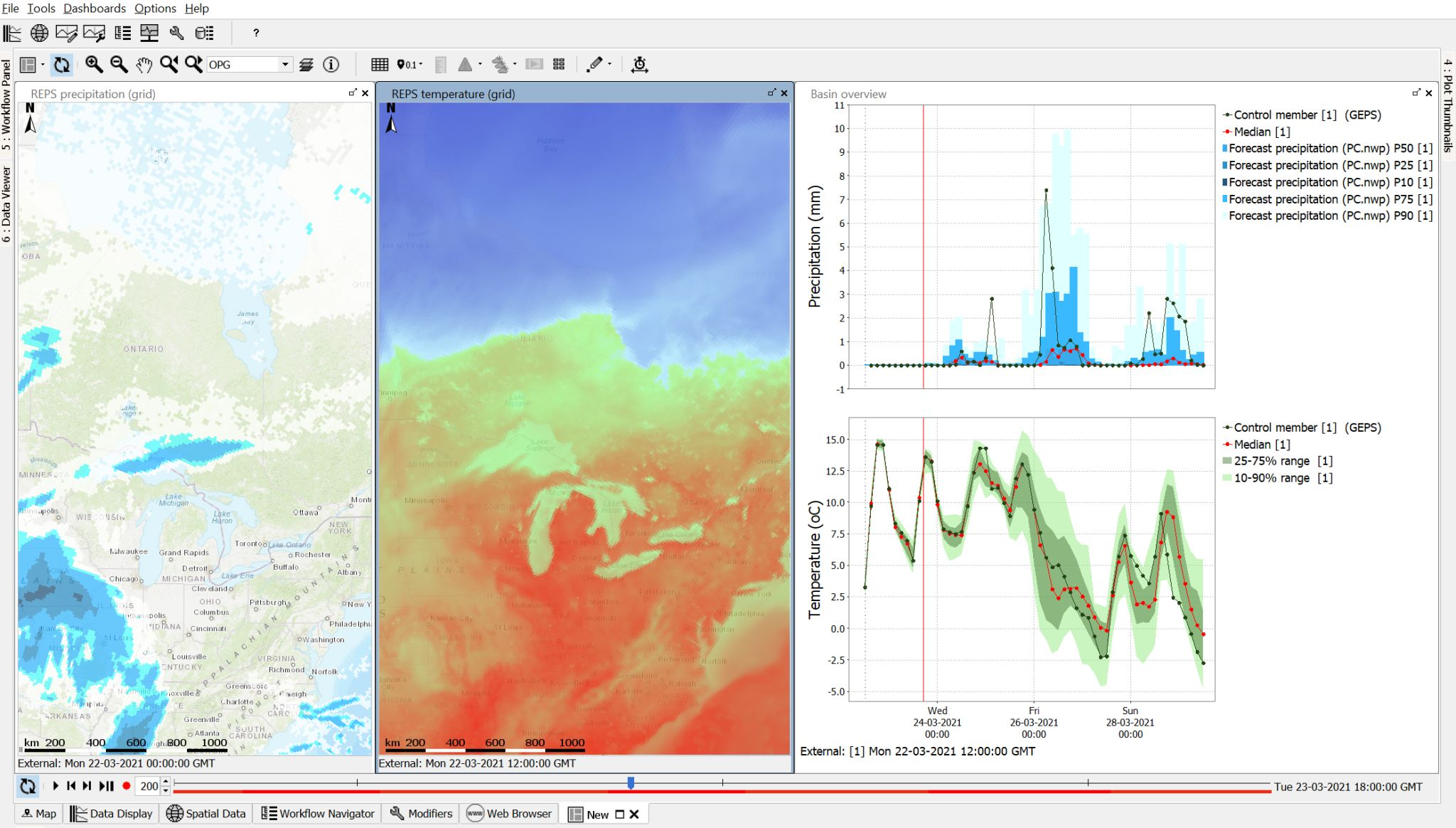

The dashboard display is used to view several displays side-by-side. The functionality is limited to time series plots (selected via the data viewer), display groups, grid (or spatial) displays, and buttons panel displays. For example, it can be used to view both a precipitation and a temperature grid plot side-by-side, synchronizing the time sliders. Or, as another example, it could be used to see display groups together with a spatial display.

When a time series plot is added to a dashboard, the settings of the visibility dialog is also preserved. Thus, if for example a time series is made invisible on the time series display, it will remain invisible on the dashboard panel as well.

All users can create and modify their own dashboards, which will be stored in the user settings. Alternatively, a configurator can configure "predefined" dashboards which will be the same for all users.

Creating and modifying a Dashboard Display

Dashboard panels can be created and modified by the user to suit their needs.

Creating a new Dashboard

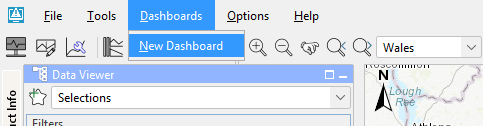

A new Dashboard can be created through the menu option of the dashboards menu in the FEWS menu bar:

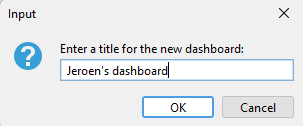

You will then be prompted to enter a title for the new dashboard. The title will be used as the title of the tab for the panel, as well as for the menu item to (re)open the dashboard. The title needs to be unique.

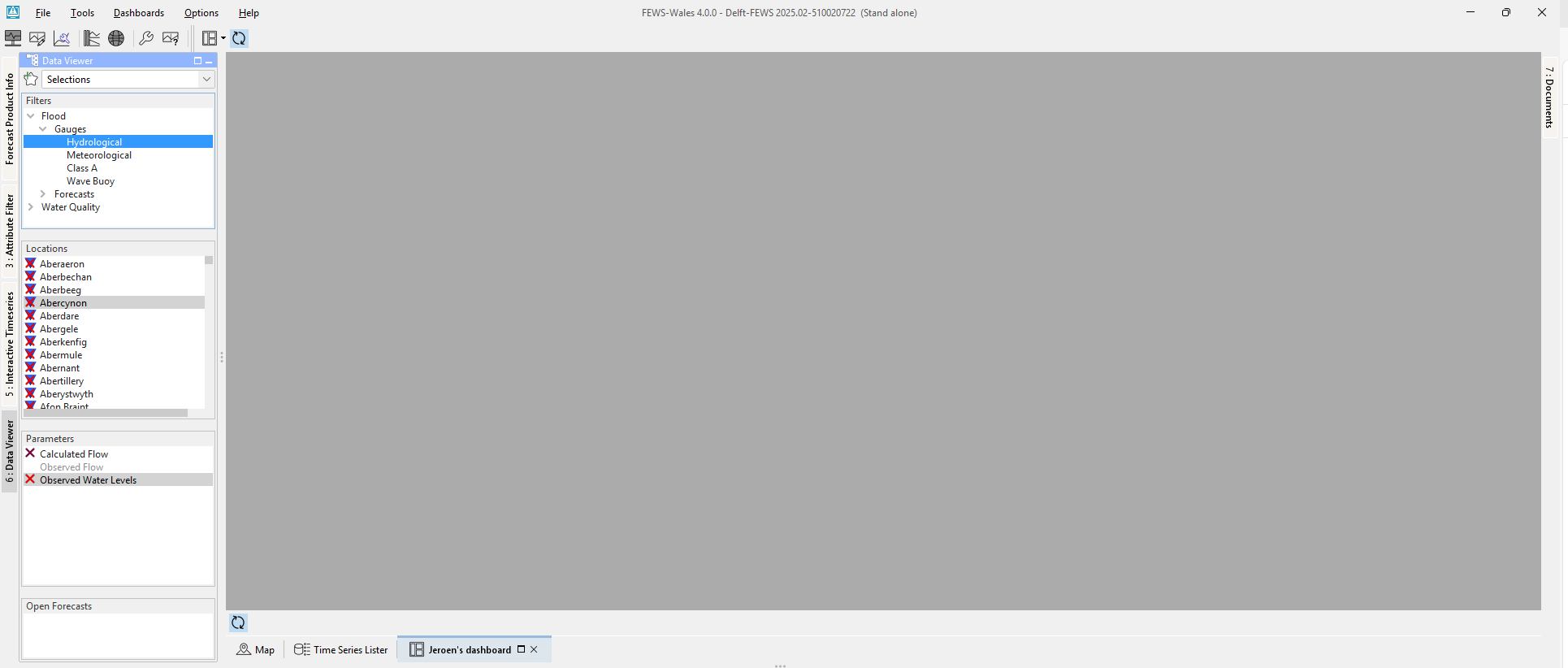

After entering a title and confirming, a new (empty) dashboard panel will be opened and it will be added to the dashboards menu.

Adding Spatial Display Frames

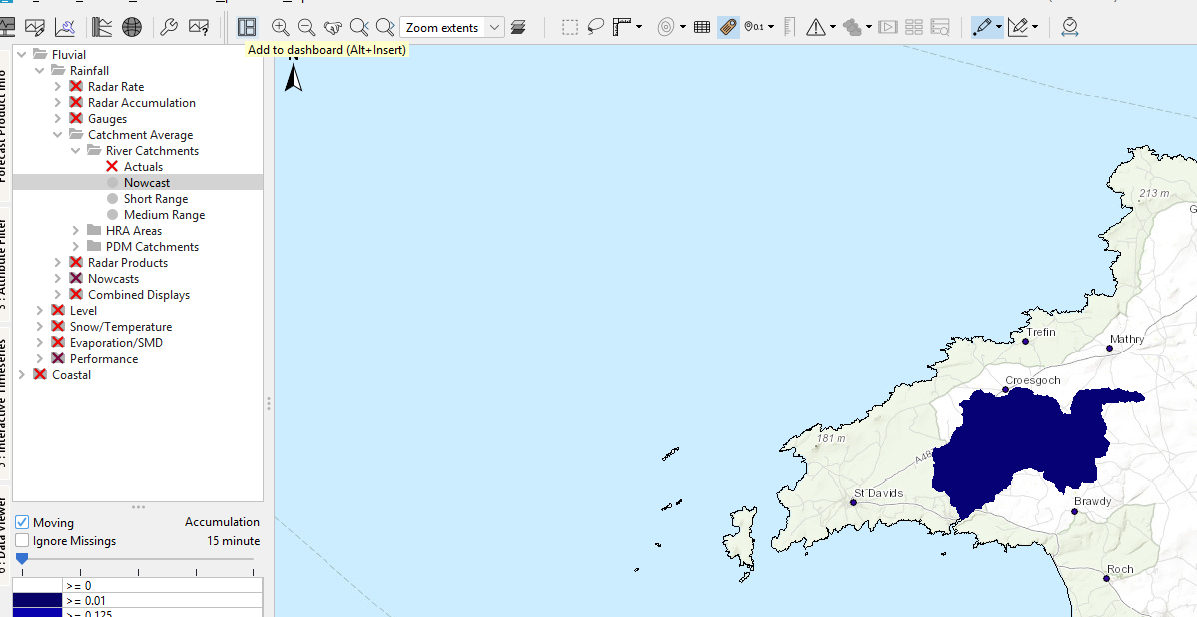

To add a new Spatial Display frame to a dashboard, open a Spatial Display and click the Add to Dashboard button in the toolbar. This action adds a copy of the Spatial Display as a frame to the currently open user-defined dashboard.

If multiple user-defined dashboards are open, you’ll be prompted to select the one to which the frame should be added. If no user-defined dashboards are open, you’ll be asked to open one first.

After adding a frame to a dashboard, the dashboard to which it was added will be brought into focus automatically.

While it is possible to later modify the contents of the frame, for example, to select a different grid plot or change the accumulation, it is advisable to set these as you want them to be before adding a copy of the spatial display to the dashboard.

Adding Time Series Dialog Frames

You can add frames from the Time Series Dialog to a dashboard. The graphs can be based on either Display Groups (available since version 2020.02) or Data Viewer selections (available since version 2021.02).

To do this, click the Add to Dashboard button located in the top-left corner of the Time Series Dialog.

Note: A dashboard must already be created and open before you can add a Time Series frame.

Modifying Frame Contents

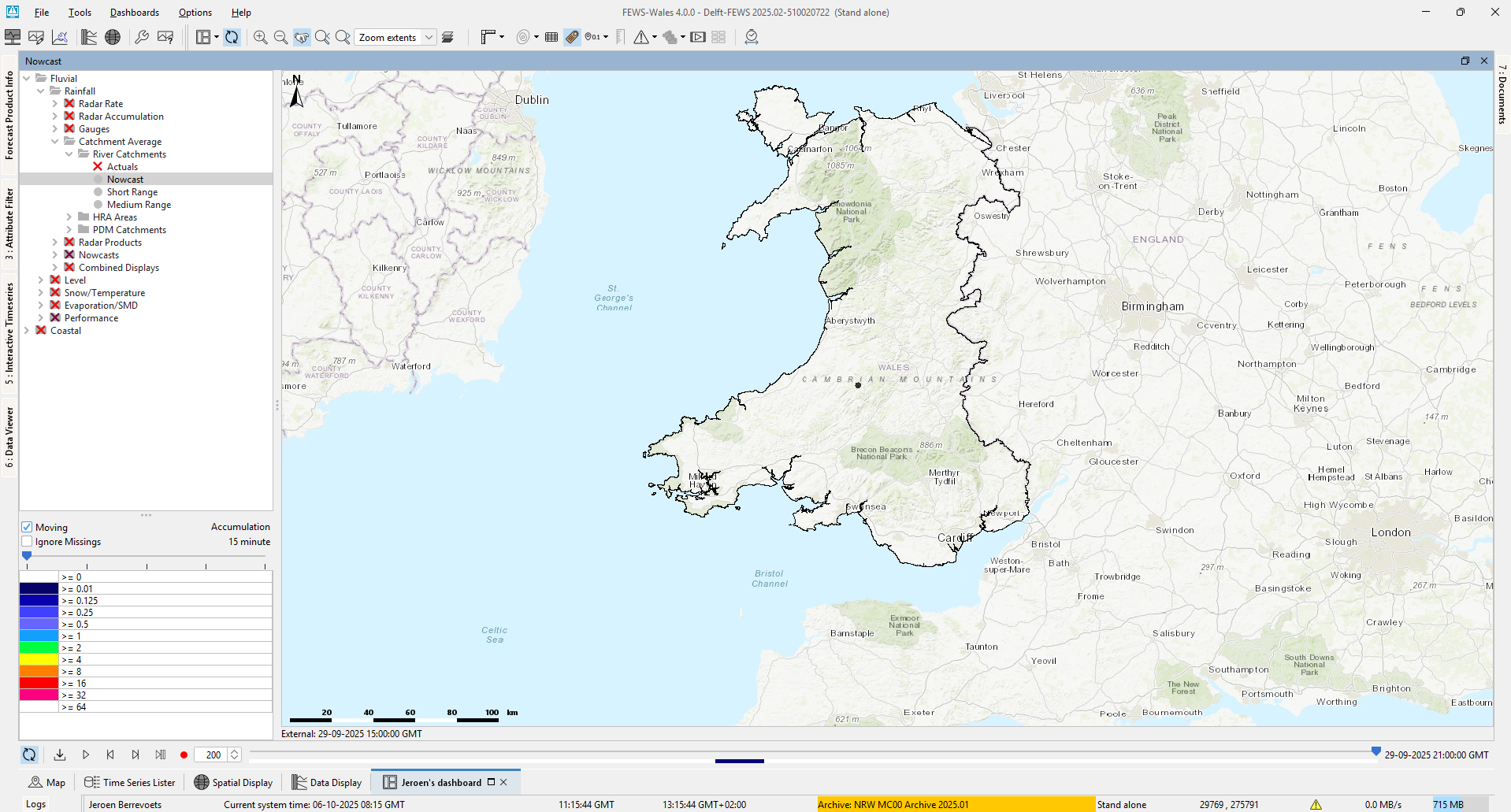

Spatial Display frames will only show the map and plot. To gain access to the plot tree, accumulation slider and legend, a frame must be maximized. This can be done by clicking the maximize button on the frame, or double-clicking its title.

By maximizing a frame, its plot selection and accumulation can be changed. When restoring the frame to its original size (by clicking the restore button or double-clicking its title), the left panel will be hidden again.

Maximized frames also have access to the spatial thumbnails, these will be automatically hidden (and the button will be disabled) when the frame is restored to its original size.

Arranging the Frames

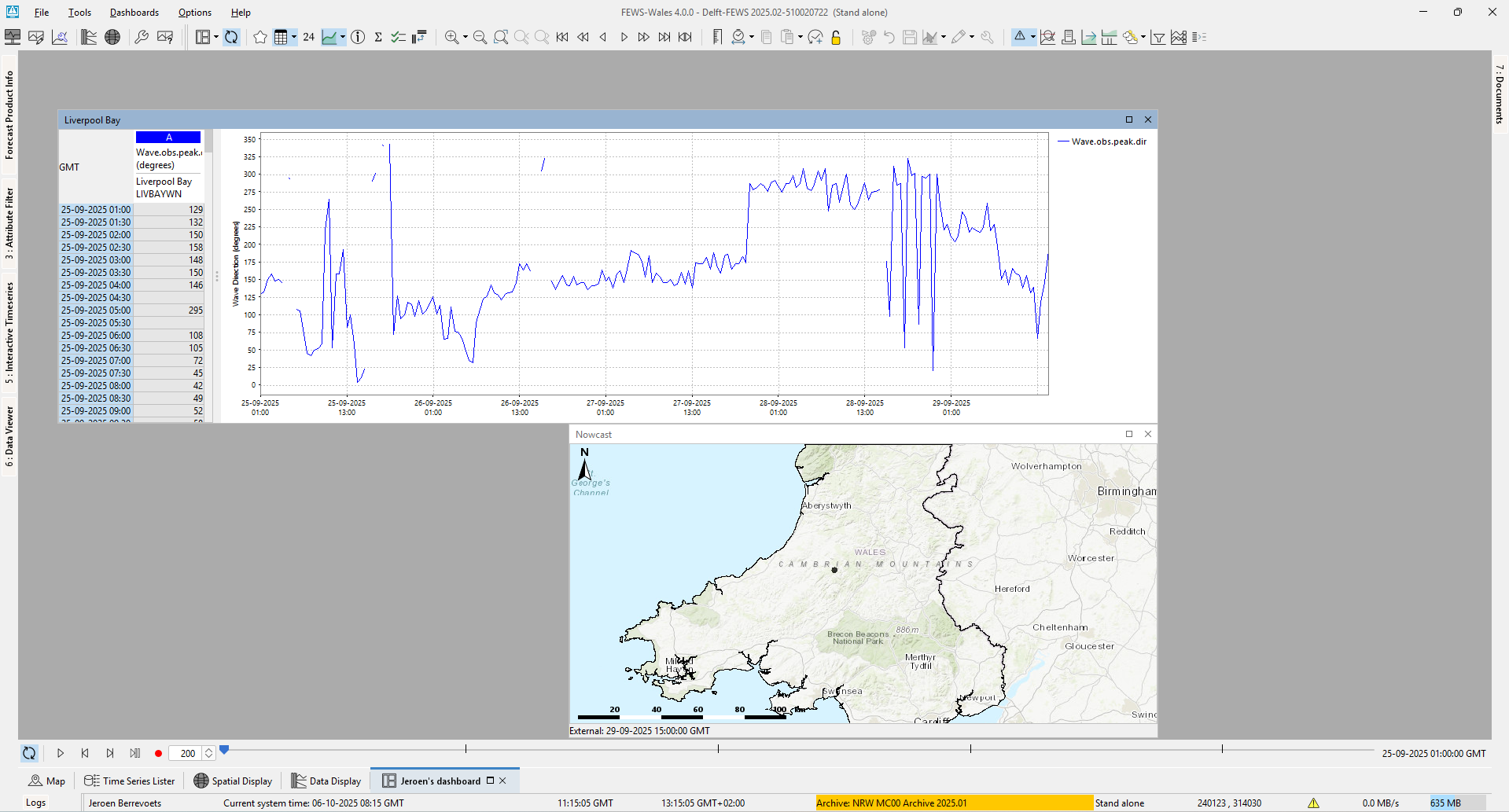

Dashboard frames can be dragged and resized using the header and borders in fixed steps ('shift + space' toggles fixed step and free dragging and resizing). The drop-down menu of the dashboard button also offers three options to aid in arranging the dashboard frames:

Arrange Frames Horizontally

This option will arrange all frames from left to right, giving each an equal amount of horizontal space. The frames will be kept in the same "left-to-right" order they are currently in.

Arrange Frames Vertically

This option will arrange all frames from top to bottom, giving each an equal amount of vertical space. The frames will be kept in the same "top-to-bottom" order they are currently in.

Arrange Frames Automatically

This option will move and scale the current desktop window to ensure all frames fit in it exactly, remove as much overlap between frames as possible, and finally remove as much empty space as possible. While doing so, it will always prefer the top frame to be made larger and the bottom frame to be made smaller. Examples for when this options will come in handy are:

• If you've resized the FEWS application / dashboard panel, several frames may have become (partially) invisible. The "Arrange Frames Automatically" would result in all frames being visible again.
• If you wish to arrange the frames in a different pattern than left to right or top to bottom.
• If you wish to resize one of your frames but doing so makes it overlap with the frame(s) next to it.

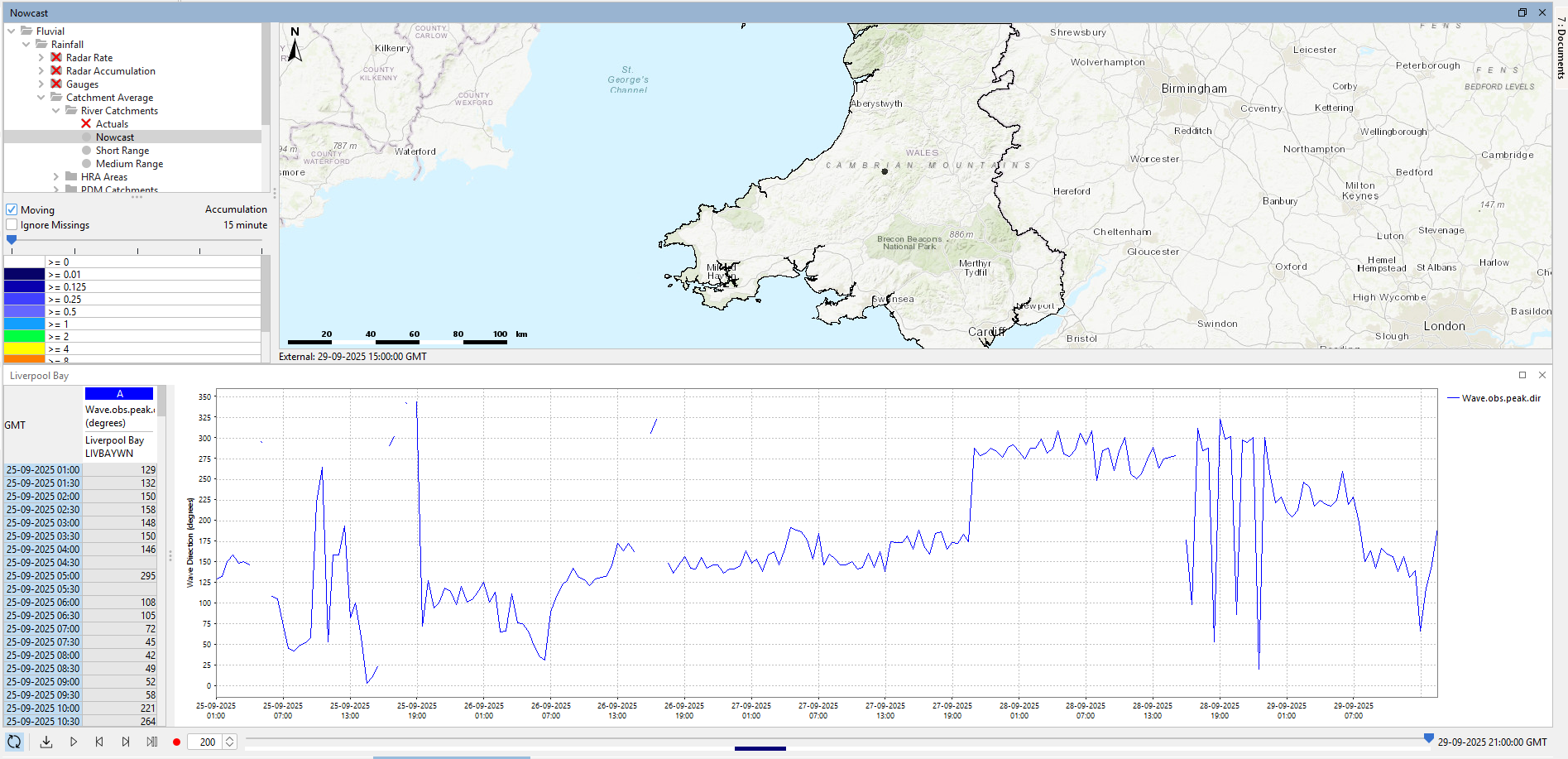

For example, the situation before using the "Arrange Frames Automatically" option is shown on the left while the result is shown on the right in the screenshots below:

Frame Titles

For newly added frames, the title is generated automatically. It consists of the grid plot name, followed by the selected accumulation (if any). The title updates automatically whenever the grid plot or accumulation changes.

Since multiple grid plots can share the same name, you can assign custom titles to frames. To do this, select the frame you want to rename, then choose Rename Active Frame from the dashboard drop-down menu. Once a frame has been given a custom title, it will retain that title even if the displayed grid plot or accumulation changes.

Note: The option to rename frames is only available for user-defined dashboards. In predefined dashboards, whether a frame title is fixed (custom) or automatically generated is determined by the configurator.

Deleting a frame

Frames in user-defined dashboards can be deleted from the dashboard by closing the frame (through the close-button in the frame's title bar). The frame will be permanently deleted from the dashboard, so after closing an reopening the dashboard, the frame will still be gone.

Frames in predefined dashboards can be closed as well, but upon closing and reopening the dashboard, the frame will reappear as it was defined in the dashboards.ini file.

Deleting a dashboard

User-defined dashboards can be deleted through the "Delete this Dashboard" option in the drop-down menu of the dashboard button. This will remove the dashboard from the user settings and from the dashboard menu in the FEWS toolbar.

Hiding a dashboard

It is possible to hide dashboards from the menu bar. To do so, specify the following in the Explorer.xml:

<userDashboards>
    <enabled>false</enabled>
</userDashboards>

In addition, make sure the dashboard.ini file, containing the predefined dashboards, is absent!

When dashboards are hidden, the dashboard-button in the grid-display disappears as well.

Dashboard Management Panel

Since Delft-FEWS 2020.02, Dashboard management panel is added to the Dashboards menu. Through the dashboard management panel, it is possible to manage public and private dashboards. On the left panel, all public dashboards of other users as well as the public dashboards of the current user are visible. The Refresh button could be used to update the list of public dashboards. If the current user wishes to copy a public dashboard of another user to a private dashboard of his/her own, or if the current user wishes to turn one of his/her own public dashboards to a private one, the button with the right arrow (in the figure below) could be used.

In addition, all user defined dashboards are private by default, and stored in user_settings.ini. However, the user can choose to set the private dashboards to public, using the button with the left arrow (in the figure below). This way, users can share dashboards with each other. To identify the visibility of the dashboards, a flag called "public" is used in the dashboard sections of the user_settings.ini.

Dashboard management panel also enables the current user to rename or delete a private dashboard. Especial characters such as "[( : , )]" are not allowed when renaming a dashboard.

Before the Dashboard management panel is opened, and after the OK button is pressed, the current state of user_settings.ini is stored in the data store for the purpose of synchronizing the dashboard states.

Dashboard Management Panel

Using a Dashboard Display

Opening a Dashboard Display

To open a dashboard, simply select the dashboard title in the dashboard menu in the top FEWS menu bar. This will open the dashboard, or if it is already open, bring the dashboard into focus.

Accessing the frame toolbars

The dashboard panel has toolbars on the top and bottom of the panel. When a frame is selected / active, its toolbars are added to the dashboard panels toolbar, thus allowing the user to access all buttons they would ordinarily have access to. In the screenshot below, the dashboard panel's button section's have been highlighted in green.

Since the right-frame is active (and synchronization has been turned of), using any of the buttons in the toolbar sections marked red will only influence the contents of the right-frame. If the user wishes to change something for the left frame, they must first select the left-frame to get access to its toolbars (the grid display button sections will then be replaced by the toolbars of the left grid display and only influence the left frame).

Synchronizing Frames

The dashboard panel can synchronize the times or map extents of its frames.

Map Extent Synchronization

The synchronize button in the top toolbar controls whether the map extents of the frames should be synchronized. When this button is on, changing the zoom level in one of the frames will also update the zoom level in the other frames.

This option works best if all frames are roughly the same size. It may also be wise to turn this option off while manually rearranging frames, since changing the frame sizes will cause constant updates of the zoom level which are then propagated to the other frames, using a lot of resource to repaint the maps and making FEWS run slow.

Time Slider Synchronization

The synchronize button in the bottom toolbar controls whether the times of the frames should be synchronized. When this button is on, changing the selected time on the time slider, or starting the animation through the play button, will also update the times of the other frames. This allows the user to quickly compare the same time steps in different plots. When this button is on, pressing the Apply button in set time dialog makes all other dashboard frames to have the same period.  (In a given frame, using the scroll wheel, the user can zoom in and out, and thereby change the period of a given frame, which can be applied to the other frames using the sync button and set time dialog.)

User-defined vs. Predefined Dashboard Displays

While it is possible for users to create and customize their own dashboards, it can also be advisable to provide several predefined dashboards through the configuration so users don't have to construct common dashboards themselves. While user-defined dashboards are stored in the user settings, predefined dashboards are configured through a dashboards.ini file, which is a root config file. To share the preconfigured dashboards with other operator clients (OCs), dashboards.ini needs to be included in the otherRootConfigFiles element of the clientConfig file. An example is provided below. For further information, please refer to the clientConfig Wiki page.

        <otherRootConfigFiles>
...

               <name>dashboards.ini</name>
        </otherRootConfigFiles>

There are several differences in between user-defined dashboards and predefined dashboards:

Configuring a Predefined Dashboard

To configure a predefined dashboard, first construct the dashboard you wish to make as a user-defined dashboard in a standalone environment. Once you are satisfied with the contents of the dashboard, you can use the debug menu (F12) of the dashboard panel to turn the user-defined dashboard you constructed into a predefined dashboard.

This will cause FEWS to automatically move the information stored for that dashboard from the user_settings.ini file to the dashboards.ini file. A new dashboards.ini file will be created if none exists, or the information will be added if a file is already present. FEWS will then automatically restart, and after this restart the dashboard will be included in the predefined dashboards section instead of the user-defined dashboards section.

If a configurator wishes to make changes to a predefined dashboard, they can use a standalone environment and the debug menu (F12) of the dashboard panel to turn the predefined dashboard back into a user-defined dashboard. This will perform the reverse action, moving the dashboard settings from the dashboards.ini back to the user_settings.ini file. After the automatic restart, changes can be made to the dashboard. Once the changes are complete, the debug menu can again be used to turn the now user-defined dashboard back into a predefined dashboard.

Note that, aside from the logical settings such as the frames and the dashboard title, the dashboard settings stored in the ini-files also include the following:

• the way the frames are arranged on the desktop

• the button status of the grid display toolbars for each frame

• the status of the synchronization buttons

It is advisable to always check that the dashboard looks as intended when (re)opening it before turning it into a predefined dashboard.

It is possible to assign permissions to predefined dashboards to control which users can access them through the Explorer.xml. More information on this can be found in the relevant section of the configuration documentation: Configuration Guide > System Configuration > FEWS Explorer > Predefined Dashboards.
